Bearing Chilling Coolant Ring for Tormach Machines

**** THIS IS A PREORDER , it will close on Dec 31st ******

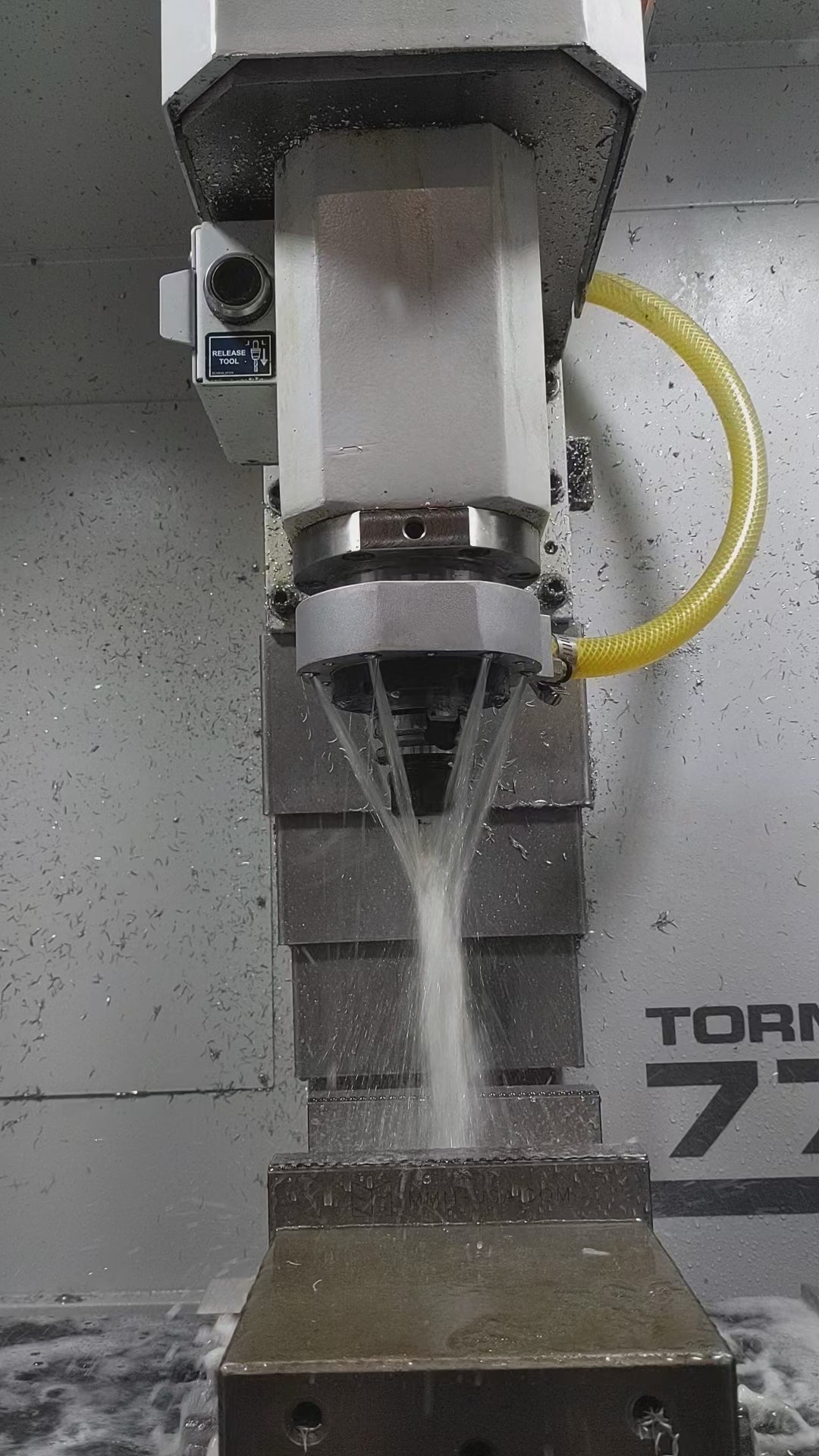

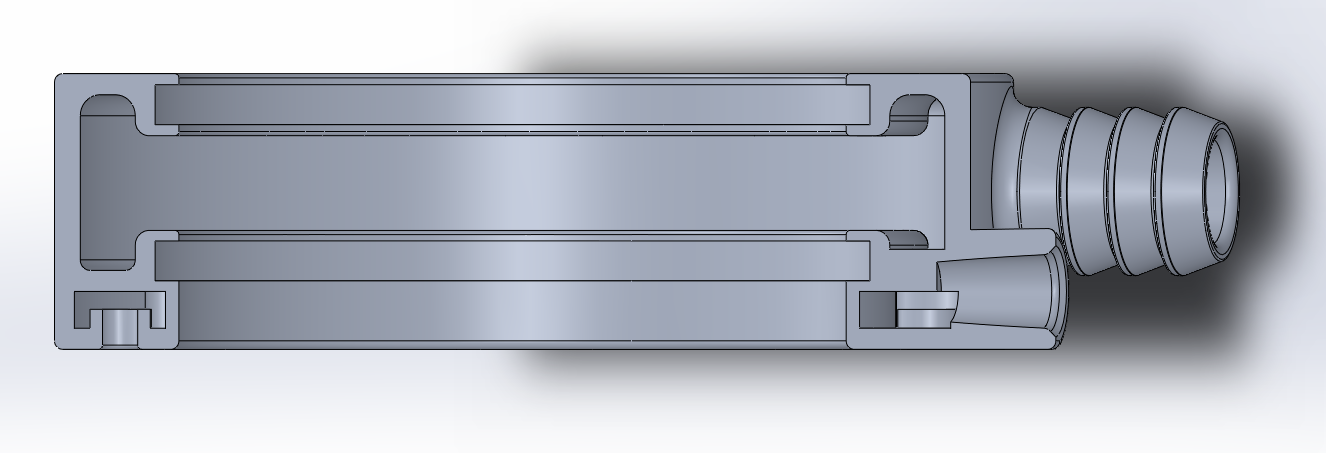

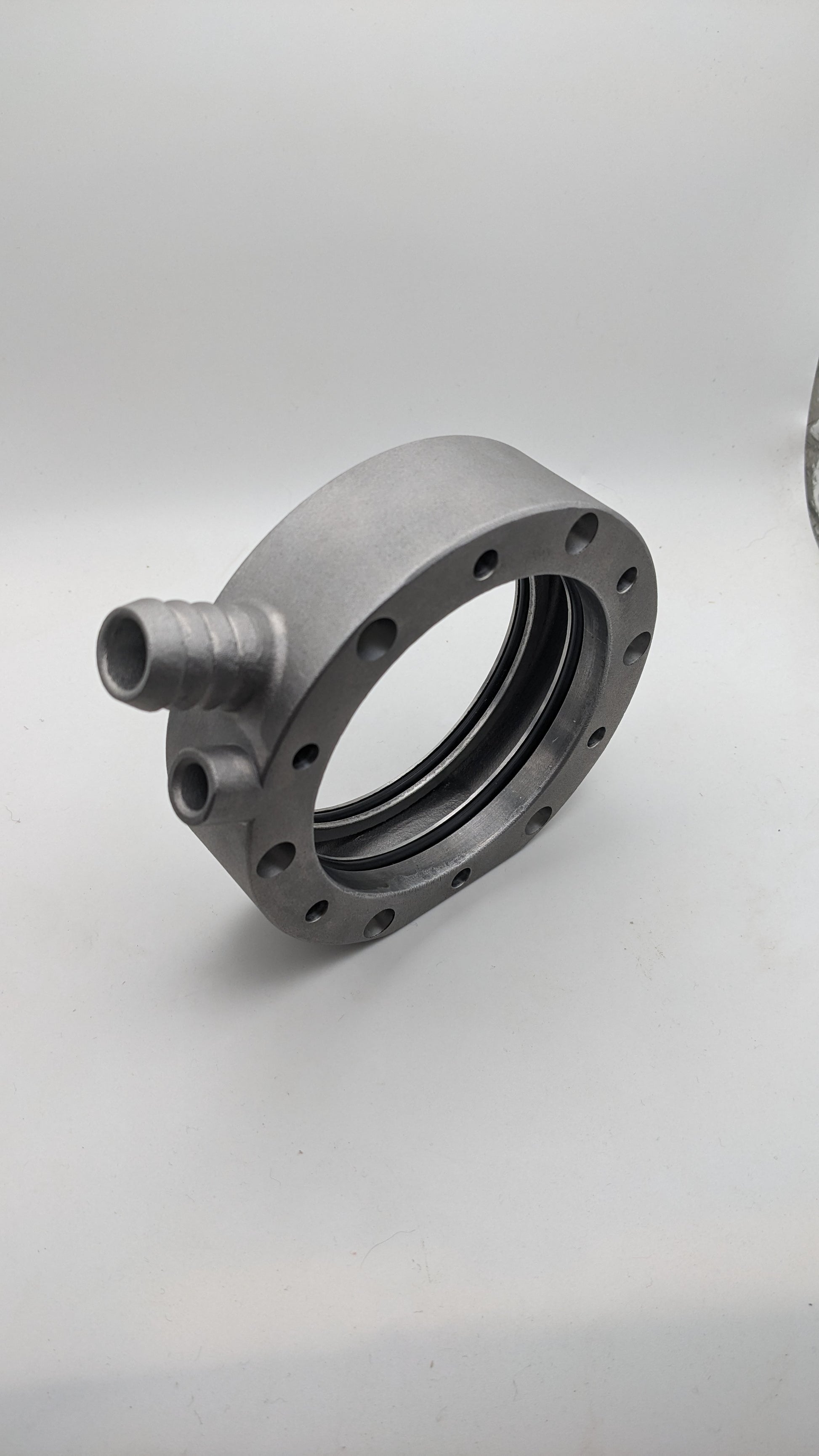

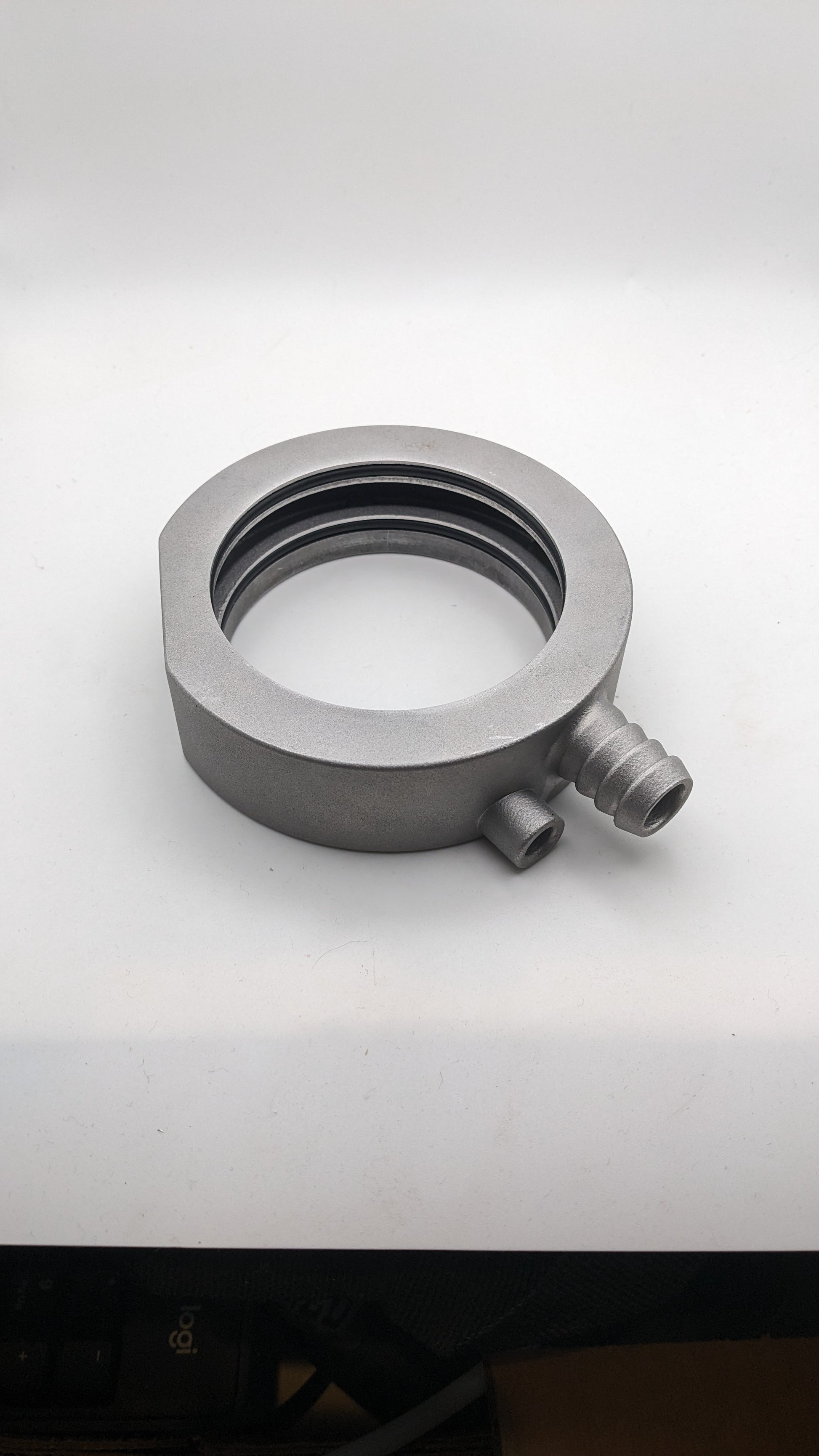

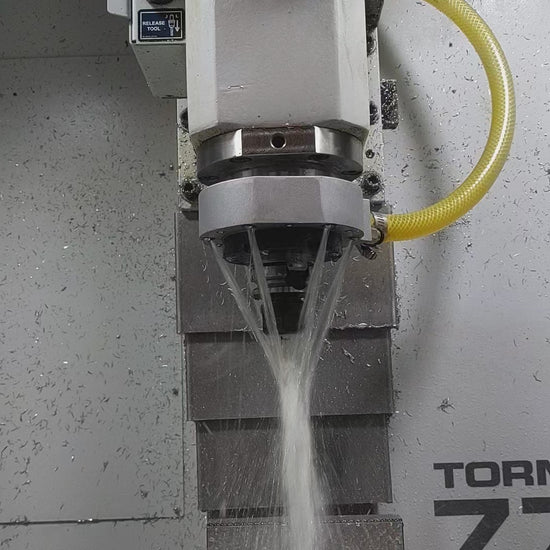

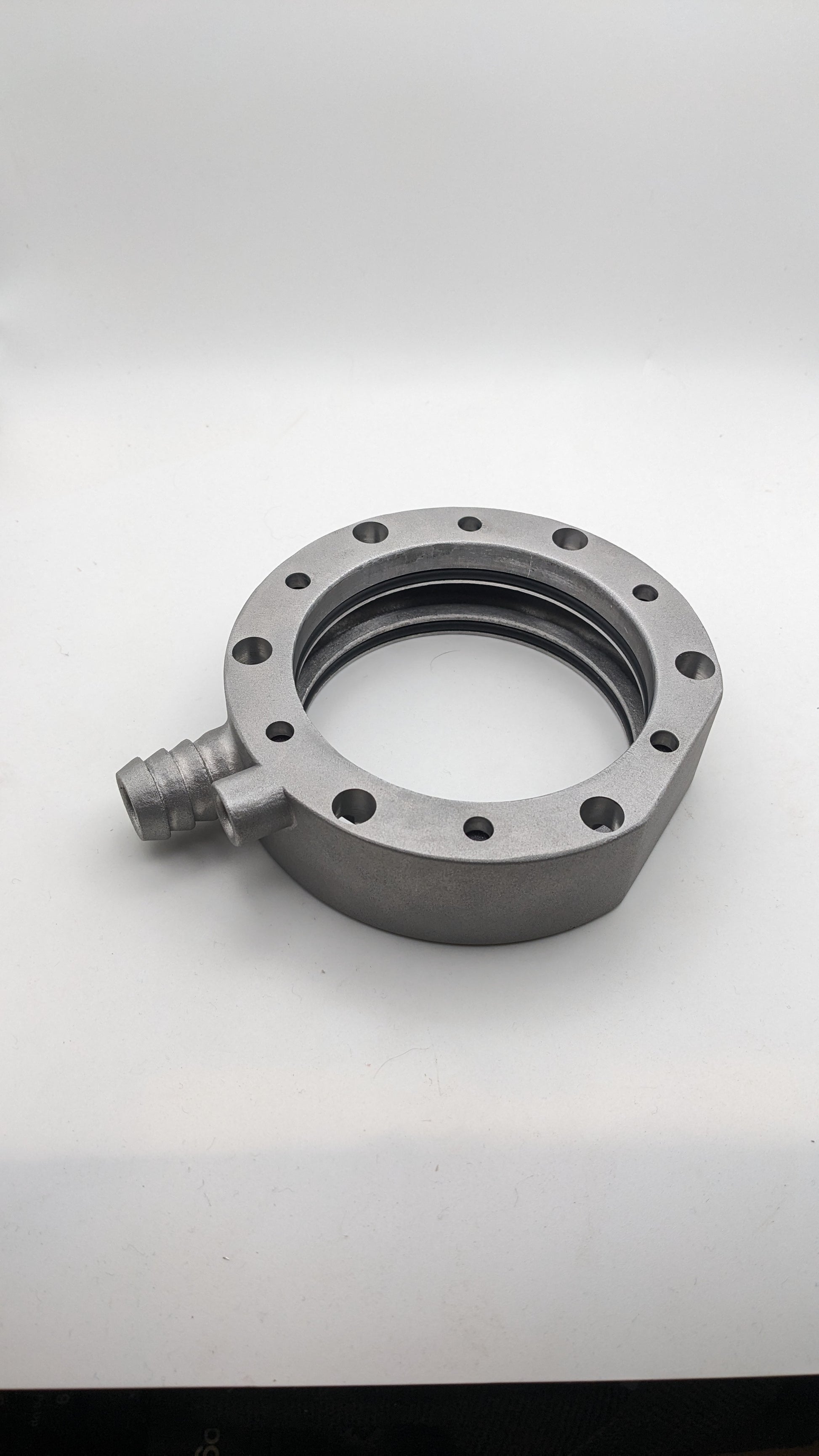

The Bearing Chilling Coolant Ring represents a breakthrough in spindle cooling technology for Tormach machines. This fully 3D-printed design features 360-degree coverage with six independently adjustable coolant jets and six air blast nozzles, each capable of 35-degree directional movement. Dual upper and lower seals maintain direct contact with the spindle housing, effectively cooling the lower bearing assembly and enabling sustained high-RPM operation while preventing thermal damage. The integrated 3/4-inch barb fitting maximizes coolant delivery, while the 1/8 NPT air connection with quick-disconnect coupling ensures straightforward installation

Latest  Update

6 Coolant Jets ( nozzles are able to move 35 degrees)

6 Air Blast Nozzle ( with each nozzle able to move up to 35 degrees)

1/8 NPT Air Fitting with 1/4 Inch push to connect fitting

3/4 Barb Fitting printed into the part , allowing for the maximum coolant from the pump ring

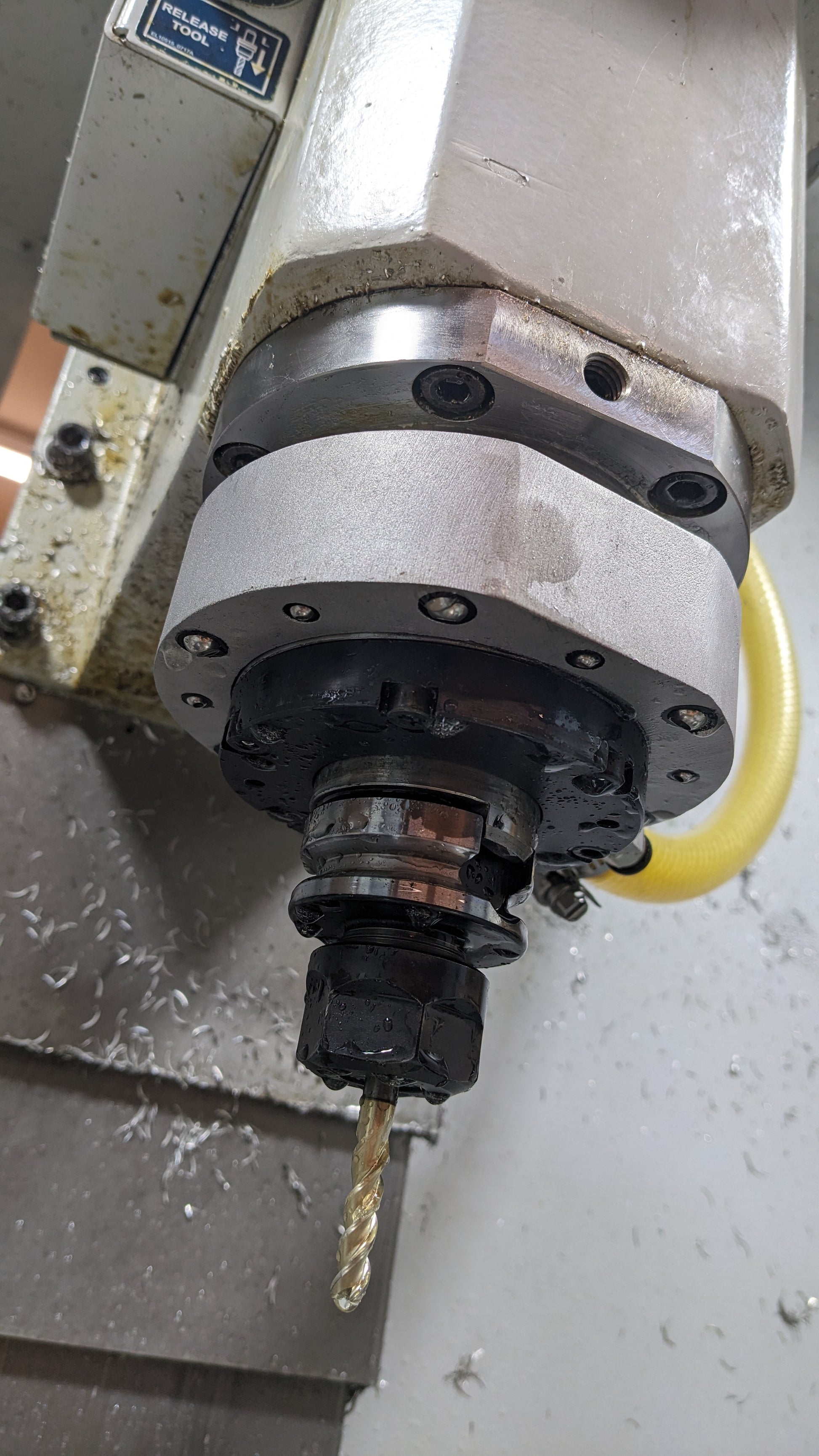

The Unit slides onto the spindle and stay in place no more mounting screws

Works with 770mx , 770m/m+ , 770 series 3*, 1100mx, 1100m/m+, 1100 Series 3*

440*

* with modicifation to the ATC for the 440 and 770/1100 series 3

Come with:

• Dowel Pin For Nozzle Adjustment
• 1/8 NPT Fitting with Push to connect fitting for Air
